Installation on Microsoft Hyper-V

This manual describes the steps to configure and prepare Microsoft Hyper-V in order to install the IAC-BOX.

Hint

  • A 64-bit host-system is required.
  • It is strongly recommended to use a dedicated physical network interface card for the Surf-LAN.
  • The system must be online at any time in order to synchronize necessary IAC-BOX registration data with the licensing server.
  • This manual describes the installation of the IAC-BOX on HyperV, not the HyperV installation itself.
  • The IAC-BOX is a realtime system. Therefore it is critical to only assign and use ressources which are capable of working within the same operational context. For example: If a VM cluster is used, only the CPU cores of one socket may be used for the IAC-BOX to avoid rapid context switching between multiple sockets, which would lead to intolerable delays and possible system faults.

Please note the minimum hardware requirements.

Users / Devices CPU Cores RAM HDD Capacity
10 users 1 2 GB 60 GB
25 users 1 2 GB 60 GB
50 users 2 2 GB 60 GB
75 users 2 2 GB 60 GB
100 users 2 2 GB 60 GB
175 users 2 2 GB 60 GB
250 users 2 4 GB 250 GB
375 users 4 4 GB 250 GB
500 users 4 4 GB 250 GB
750 users 4 4 GB 250 GB
1000 users 4 8 GB 250 GB
1500 users 4 8 GB 250 GB
2000 users 8 8 GB 250 GB
3000 users 8 16 GB 250 GB
Unlimited users 8 16 GB 250 GB

Attention

  • Starting from 250 users a processor with at least 2,50 Ghz or better is required
  • Virtualized environments generally need more ressources due to the nature of virtualization
  • Functions like the Advanced Web Filter, the Application Control or the Connection Tracking are very CPU-intensive and should therefore be used with caution
  • All specifications are subject to change without notice. The most recent version of this list can always be found here: http://www.iacbox.com/en/support/hardware-requirements/
  • Some versions of Hyper-V may not support VLANs!
  • In order to use the new DNS based Web Filter of IAC-BOX version 17.2, at least 4GB of internal memory must be available.

Configuration

After opening Hyper-V click on Virtual Switch Manager which can be found on the right side of the screen.

../_images/hyper_v_1.png

The IAC-BOX does require at least 2 network interfaces, the Office-LAN for the uplink and management and the Surf-LAN for guest devices. Therefore in the Virtual Switch Manager click on New virtual network switch and then select External. Continue with clicking on Create Virtual Switch.

../_images/hyper_v_2.png

In the next step name this interface Office-LAN. As External Network select your primary physical network adapter which is connected to the internet.

../_images/hyper_v_3.png

Now repeat this process with another virtual network switch and call it Surf-LAN. For this virtual interface, select the physical interface which will be connected to the Surf-LAN.

../_images/hyper_v_4.png

Creating the Virtual Machine

After the configuration of the virtual network switches is done, right-click on the Hyper-V server in the left list and choose New and Virtual machine. This will open up a new window and show you the Before You Begin hints, proceed with Next.

../_images/hyper_v_5.png

Enter a name for the new virtual machine, e.g. IAC-BOX and click Next to continue.

../_images/hyper_v_6.png

Depending on your Hyper-V version you may can select the Generation of the virtual machine. Choose Generation 1 as Generation 2 is unsupported with IAC-BOX. Continue with Next.

../_images/hyper_v_7.png

Now select the amount of memory you want to allocate to this virtual machine. Note the minimum hardware requirements displayed on top of this manual.

../_images/hyper_v_8.png

In the following window select the Office-LAN as connection and proceed by clicking on Next.

../_images/hyper_v_9.png

Now a virtual hard drive must be configured. Enter a name and configure the size according to the minimum hardware requirements.

../_images/hyper_v_10.png

In the next screen you can decide how to include the installation medium. Usually in virtualized environments this is done by ISO images, but if the host system has a CD-ROM drive, then a CD can also be used.

../_images/hyper_v_11.png

Confirm the settings summary for this virtual machine and click Finish to create it.

../_images/hyper_v_12.png

Now the newly configured virtual machine will show up in the main list of Hyper-V. Select the new virtual machine and then click on Settings which can be found on the right side.

../_images/hyper_v_13.png

Attention

  • If the installations is being performed with an IAC-BOX version older then 17.2, then it is necessary to use Legacy Network Adapters. Starting with IAC-BOX 17.2, it is also possible to use the regular network interfaces, but due to the random naming scheme these interfaces will be added in a random order. In the following steps the Office-LAN is being removed and added again from the virtual machine configuration.

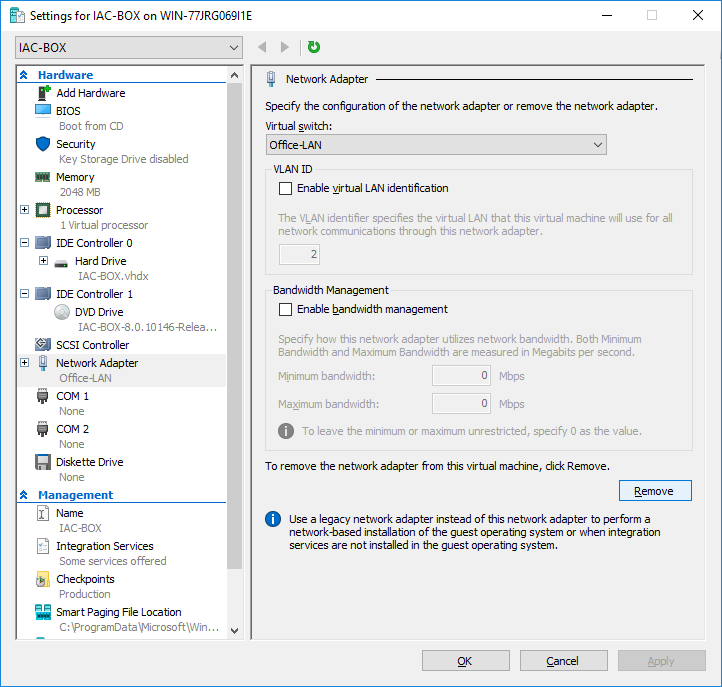

In the Hardware section select the Network Adapter Office-LAN and then click on Remove.

../_images/hyper_v_14.png

Now click on Add Hardware, select Legacy Network Adapter and add it.

../_images/hyper_v_15.png

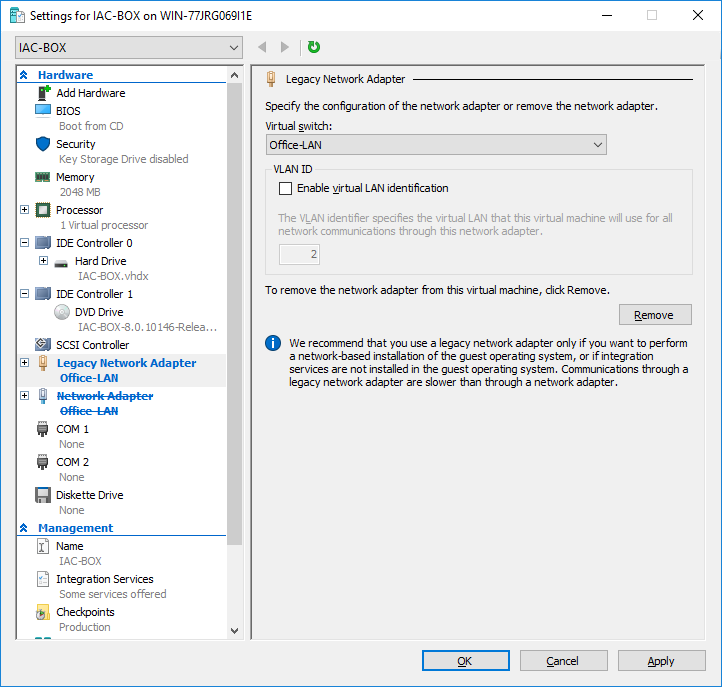

Click on the newly added Legacy Network Adapter and again select Office-LAN as network.

../_images/hyper_v_16.png

For the Surf-LAN, again click on Add Hardware and choose Legacy Network Adapter. Select the newly added adapter and assign the Virtual Switch to Surf-LAN. Click Apply and OK to close the window and proceed with the next step.

../_images/hyper_v_17.png

Return to the Hyper-V Manager, select the IAC-BOX virtual machine and click on Connect.

../_images/hyper_v_18.png

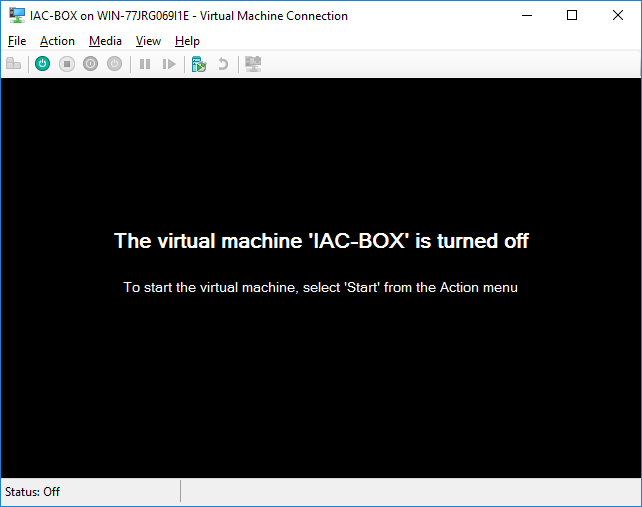

In the new Virtual Machine Connection window click on Action and then Start to start up the new IAC-BOX virtual machine.

../_images/hyper_v_19.png

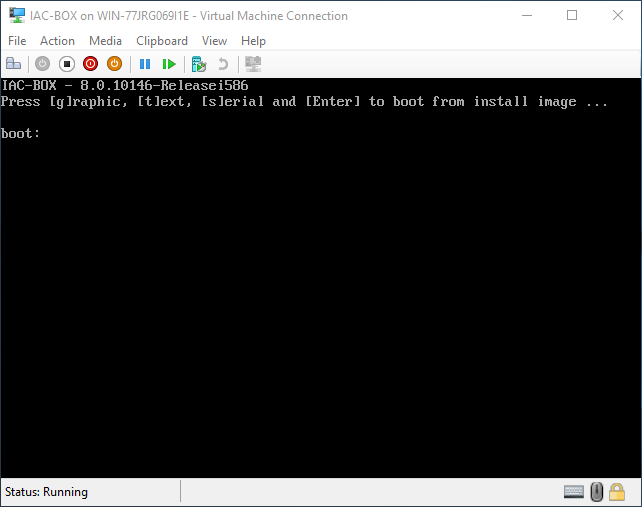

If the configuration of the virtual machine has been done right, it will start to boot from the IAC-BOX ISO image or from the IAC-BOX CD/DVD. Enter g and confirm by pressing Enter to go on with the installation. You will see the default installation process of IAC-BOX.

../_images/hyper_v_20.png

Now you can go on with the installation of IAC-Box.

Hint

Please note that in case the setup does get stuck while initializing, you can press ESC to continue.
